OrgApp

OrgApp OrgApp is a Java library to handle and draw organization charts (organigrams).

The library has also an applet and a Swing Java client able to view an organization chart read from a file, in different formats (one of them based upon XML).

The applet supports charts with different layouts and boxes with hyperlinks, customizable colors, sizes, positions, … and it is easy to embed in an HTML page.

Examples

To view the applet, you need a browser supporting Java Plug-in.

Requirements

Supported OS: 100% Java

Download

SourceForge Logo The full distribution, including source code, can be downloaded here.

Additional project resources are hosted in a Source Forge Repository.

OrgApp is also supported by:

Documentation

Organigram Applet

OrgApplet.jar is the applet to view the charts, the applet requires a browser supporting Java Plug-in (with a Java version higher than 1.5). The syntax is:

<applet name="Organigram" code="OrganigramApplet.class" archive="URLTO_OrgApplet.jar">
  <param name="DataSource" value="URLTO_organigram.xml" />
  <param name="Target" value="_blank" />
  <param name="Data" value="embedded organization chart definition" />
  <param name="DataType" value="type of the definition" />
</applet>

The parameters meaning is:

  • DataSource is the URL of the resource that contains the definition of the orgnanigram in any of the supported formats.
  • Target is the target used in links (unless a more specific will be present in the definition of the organigram node).
  • Data, if DataSource is not defined this fileds holds the embedded definition of the chart in one of the supported format.
  • DataType is the type of the embedded definition (0=SOF, 1=TXT, 2=sitemap).

Check the source page to see a real usage.

Organigram Application

OrgApp.jar is a stand alone Java application to view the organization charts, that can be launched with the syntax:

java -jar OrgApp.jar path_to_organigram.xml

where path_to_organigram.xml is obviously the path to the organigram in any of the supported format (format used is autodetected).

Organigram Converter

Convert.jar is a tool to transform an organization chart file from a format to another, the syntax:

java -jar Convert.jar input_file output_type

input_file is the path of the input organigram

output_type is the type of the output organigram, with the following encoding: 0 simple organigram format, 1 text organigram, 2 sitemap.

The output will be printed to the screen, but can be redirected to a file (adding > path_to_output to the command).

The conversion form SOF format to another format can loose lot of information…

Organigram File format

OrgApp support three organigram file formats.

  • SOF, Simple Organigram Format is a XML based file format
  • Text Format, is a format where each raw is a node of the organigram
  • Sitemap format, as described in http://www.sitemaps.org

See data file of the first organigram and of the second one for examples of the file format or the SOF file format documentation present inside the doc directory of the distribution.

Server side helpers

The distribution contains server side library to easly integrate the applet.

OrgApp.inc is a PHP script to easly generate the HTML code necessary to draw the organization chart. Sample code:

require_once("lib\OrgApp.inc");
$OC = new OrgApp();
//Set the dimension of the chats $OC->width=400;
$OC->height=300;
//Generate a chart, the data is a URL
$OC->emitRef('data.xml');
//Generate a chart, the data is read from a file and embedded in the html page
$OC->emitFile('data.xml', 0);
//Generate a chart with the data given
$OC->emitData('<organigram><unit name="Doe, John" department="CEO" role="H"/></organigram>', 0);

Dokuwiki

It's also available a Dokuwiki plugin here.

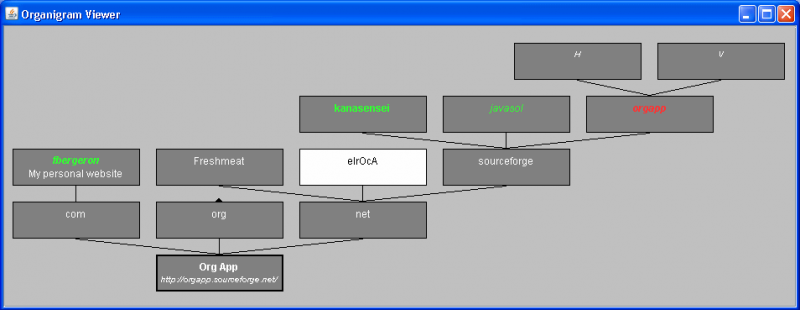

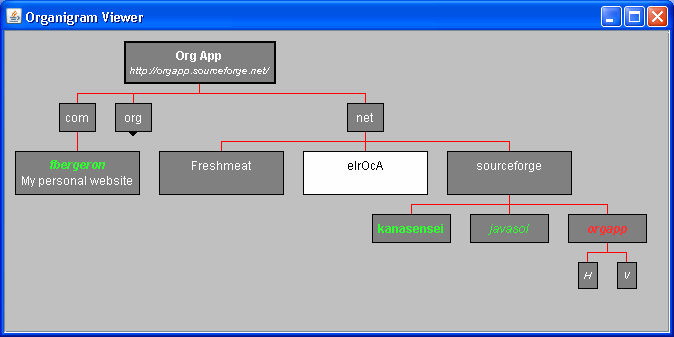

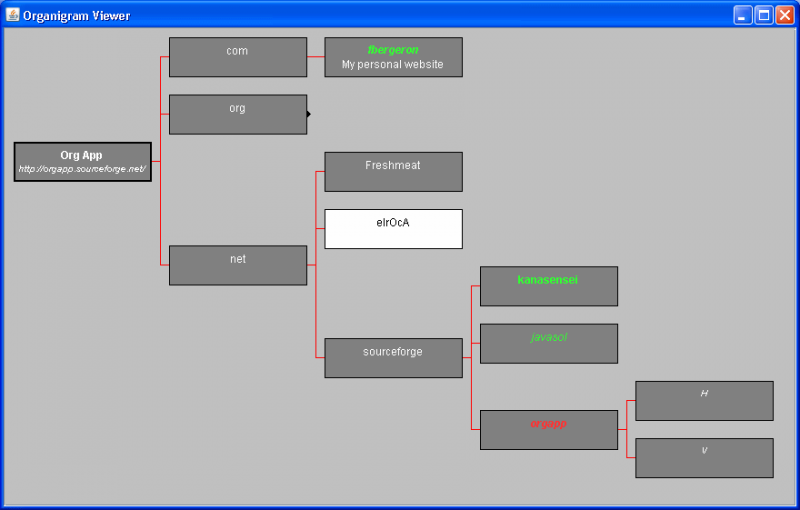

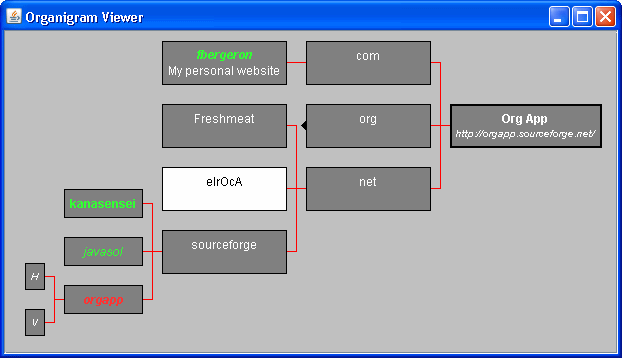

Screenshoots

Development

To Do

  • Hyperlinks on box lines
  • Offscreen (?)
  • MouseOver effect
  • Search
  • Graph editor (?)
  • Images on the node and in general flexible layout of the node
  • Staff drawing
  • Matrix dependencies
           B
           |-S
        -----------
        |     |   |
        B     B.. |
        |-O     ..M
        |-O......

Changes log

Version 0.4.0

  • PHP script to easly generate the applet in a HTML page
  • New layouts: TOP (e.g. organization chart), LEFT (e.g. classic tree chart), BOTTOM (e.g. family tree), RIGHT (e.g. direct elimination matches)
  • It is possible to specify line mode (direct or connector) and use name instead of numbers (e.g. mode=“grow” instead of mode=“2”)
  • Applet can take the chart definition from “Data” and “DataType” parameters
  • Collapsible nodes
  • Added handling of collapsed flag in the GUI (right click toggles it)
  • Colors now can be expressed also with HTML color notation

Version 0.3.0

  • Compact aligment
  • Reading/writing organigram from sitemap.xml
  • Target of the link can be specified
  • Bugs fixing

Version 0.2.0

  • XML file format refactory
  • Writing organigram in XML format
  • Reading/writing organigram in text format
  • Adding Layout support (vertical/horizzontal)
  • Box mode introduced in layout manager in order to take less room to display the boxes. There are three modes:
    • MAX, where all boxes have the same size
    • MIN, where the boxes have the minimum size (granted that all boxes on the same row/col have the same size)
    • GROW, that grants that “boss” boxes are not lower than operative
  • Metadata handling including box type (boss highlight)
  • Individual box colors
  • Individual line font
  • Adding compact visualization

Version 0.1.0

  • 2005/11/20 - Improved scrollbars management.
  • 2005/11/20 - Improved the layout management and moved it to a dedicated class.
  • 2005/11/20 - Implemented basic individual line font management and horizontal alignment.
  • 2005/11/20 - Implemented cursor and tooltip update for boxes with a defined link.
  • 2005/11/13 - Implemented box hyperlinks (not on lines yet).
  • 2005/11/06 - Began to implement color, font and style for box lines.
  • 2005/11/06 - Introduced scrollbars.
  • 2005/10/30 - Added link tag for box lines.

Project status

Status: Release

Language: Java

Software metrics.

Licence & Copyright

Copyright © 2005-2010 Frédéric Bergeron & eIrOcA (eNrIcO Croce & sImOnA Burzio)

This program is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this program. If not, see http://www.gnu.org/licenses/.
